HCPL-316J

Интегр.схема  оптрон HCPL-316J

Features
• 2.5 A maximum peak output current
• Drive IGBTs up to IC = 150 A, VCE = 1200 V
• Optically isolated, FAULT status feedback

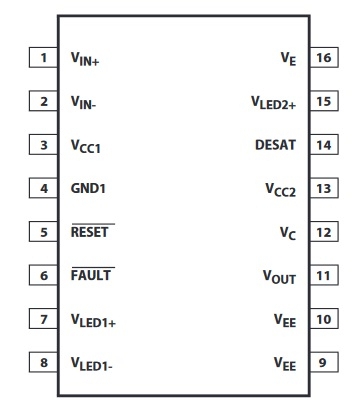

• SO-16 package
• CMOS/TTL compatible
• 500 ns max. switching speeds• “Soft” IGBT turn-off
• Integrated fail-safe IGBT protection
– Desat (VCE) detection
– Under Voltage Lock-Out protection (UVLO) with hysteresis
• User configurable: inverting, noninverting, auto-reset, auto-shutdown
• Wide operating VCC range: 15 to 30 Volts
• -40°C to +100°C operating temperature range
• 15 kV/μs min. Common Mode Rejection (CMR) at VCM = 1500 V
• Regulatory approvals: UL, CSA, IEC/EN/DIN EN 60747- 5-5 (1414 Vpeak Working Voltage)
